regulating wheels

For Centerless grinding

Contact us for more technical details

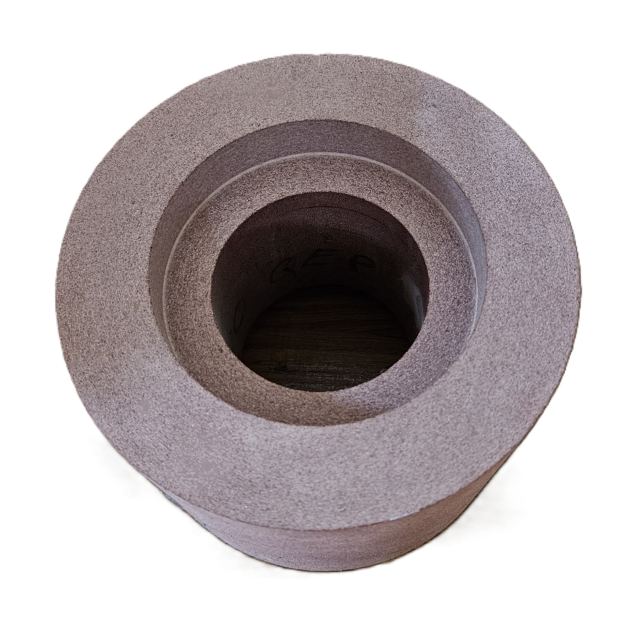

Regulating wheels

Regulating (control) wheels are used for moving workpieces in a centerless grinding process. They regulate the rotation of the workpiece against the grinding wheel, therefore controlling the material removal rate and also the feed rate. High traction, long life and good absorption of all excess vibrations during grinding are able to offer fast, precise and consistent results.

  • External diameter D: 100-406
  • Thickness H: 10-300
  • Bore d: 50,8-280
  • Recess P, F1, F2: as per request
    *in mm, other dimensions available on request

  • Chrome plated bars and tubes
  • Hydraulic cylinders
  • Pneumatic pistons
  • Piston rods, gudgeon pin
  • Electric motor axles
  • Drilling bars
  • Bearings

Wheels are available for a wide range of centerless grinding machines, including:

  • Napomar
  • Cincinnati
  • Mikrosa
  • Tos
  • Jotes
  • Nomoco
  • Landis
  • Bryant
  • Norton
  • Monza
  • Giustina
  • Ghiringhelli

Technical Details

BOND TYPE

Synthetic resin

ABRASIVE GRAIN TYPE

Aluminum oxide

GRIT SIZE [FEPA]

80-120

HARDNESS

Q – Hard

PERIPHERAL SPEED [m/s]

35

Product Gallery

Contact Us Today

Send us a message in order to find the best solution for your application.
